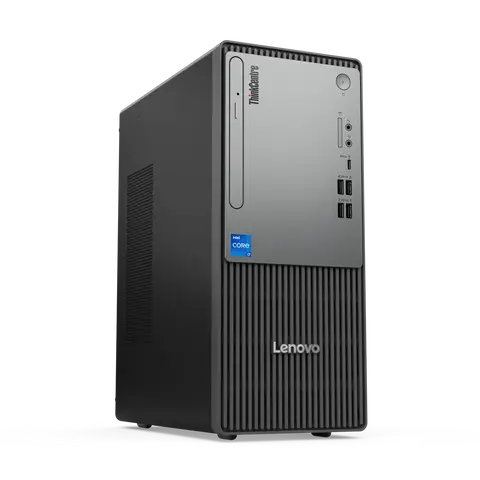

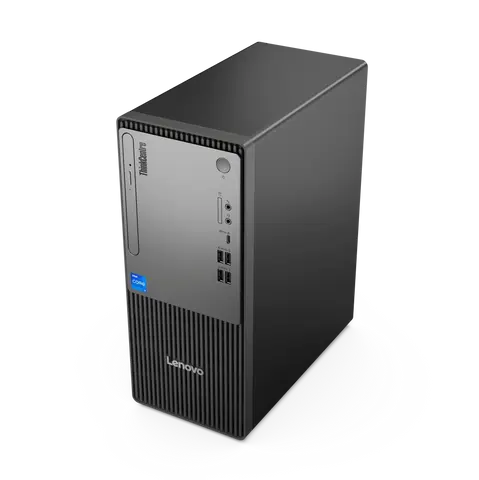

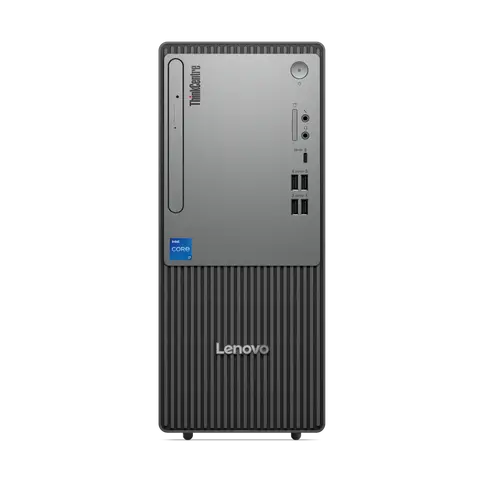

PSREF Product Specifications Reference   ThinkCentre neo 50t Gen 5  12UD001WI V PERFORMANCE Processor Intel® Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Graphics[1] Integrated Intel® UHD Graphics 770 Chipset Intel® B760 Chipset Memory 1x 16GB UDIMM DDR 5-5600 Memory Slots Two DDR 5 UDIMM slots, dual-channel capable Max Memory[2] Up to 64GB DDR 5-5600 Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 Max Storage Support[3] Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade[4] Card Reader 3-in-1 Card Reader Optical DVD±R W Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec Speakers 2Wx1 Power Supply 260W 90%[5] DESIGN Keyboard USB Calliope Keyboard, Black, Hebrew Mouse USB Calliope Mouse, Black Optional Bay None Expansion Slots One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm) Two M.2 slots (one for WLAN, one for SSD) Case Color Black System Fan NoneToolless Chassis Screw Toolless Chassis Screw Pen Pen Not Supported Form Factor Tower (13.6L) Dimensions (WxDxH)[6] 145 x 294 x 340 mm (5.71 x 11.57 x 13.39 inches) Weight[7] Around 5.6 kg (12.35 lbs) CONNECTIVITY WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 WWAN Non-WWAN Ethernet RTL8111K, 1x RJ-45 Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W ch arging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) Rear Ports[8] 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4a (HBR2) 1x VGA 1x Ethernet (RJ-45) 1x line-out (3.5mm) Optional Rear Ports (configured) None SECURITY & PRIVACY Security Chip Discrete TPM 2.0, TCG certified Physical Locks Kensington® Security Slot™ Padlock Loop Smart Cable Clip None Chassis Intrusion Switch Chassis Intrusion Switch MANAGEABILITY System Management[9] NoneSERVICE Base Warranty 1-year, Courier or Carry-in Included Upgrade 3Y Onsite from 1Y Courier/Carry In SEE (CPN) CERTIFICATIONS Green Certifications RoHS / WEEE / REACH TCO Certified 9.0 Other Certifications - SOFTWARE Operating System Windows® 11 Pro, Hebrew / English Bundled Software None ACCESSORIES Bundled Accessories None MODEL TopSeller : Yes EAN / UPC / JAN: 0198154068646 Announce Date: 2024-07-15End of Support: 2031-02-15 Note: [1] The information of integrated graphics are not applicable for the models with processor which has no integrated graphics inside (for the details, please refer to processor section). [2] The max memory is based on the test results with current Lenovo memory offerings. [3] The max capacity of each disk type is based on the test results with current Lenovo storage offerings. [4] 2.5'' HDD bay is optional part, only for customer self upgrade purpose and the hard drive is sold separately. Two onboard SATA ports support up to two drives of 2.5" HDD, 3.5" HDD and ODD. [5] Hybrid PSU sources configured for supply assurance; assembled product has maximum wattage of 258W. [6] The system dimensions may vary depending on configurations. [7] The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. [8] For video ports on discrete graphics, please see graphics section [9] Intel vPro offers a superset of DASH’s defined capabilities. · Lenovo reserves the right to change specifications without notice.● ● ●● ● ● ● ● ● ● ● ● ● ● ●● ● Premier Support - A direct 24x7x365 line to our most elite technicians. Advanced technical support, 24x7x365, in more than 100 markets Technical Account Managers for proactive relationship and escalation management Comprehensive hardware & OEM software support Priority on service delivery and repair parts Single point of contact for simplified end-to-end case management Lenovo Service Connect Portal for customized reporting and product support Accidental Damage Protection - Protection of your PC from the unexpected. Experience shows that a significant portion of devices may be damaged (and not covered under warranty) in the first three years. Lenovo's Accidental Damage Protection service covers accidents beyond the system warranty such as drops, spills, bumps and even electrical surges. Make sure your new device has maximum protection, avoid unplanned costs and get peace of mind. Base Warranty - Included with the systems you purchase, default 1- or 3-year coverage window. Warranty Extensions & Upgrades - Service and protection that's right for your circumstances.  Pick Up & Return Courier • Technician Installed Customer • Onsite Support • Replaceable Unit Service • International Warranty Upgrade • Lenovo may not offer the products, services or features discussed in this document in all regions. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area. Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. Lenovo provides this publication "as is" without warranty of any kind, either express or implied, including the implied warranties of merchantability or fitness for a particular purpose. Recomme nded Accessories Lenovo Legion M220 Wireless RGB Gaming Mouse GY51U28359 Lenovo Wired VoIP Headset 5000 4XD1R88995 Lenovo 310 FHD Webcam Black GXC1S15024 PSREF Product Specifications ReferencePlease click here to view the full list of accessories.
