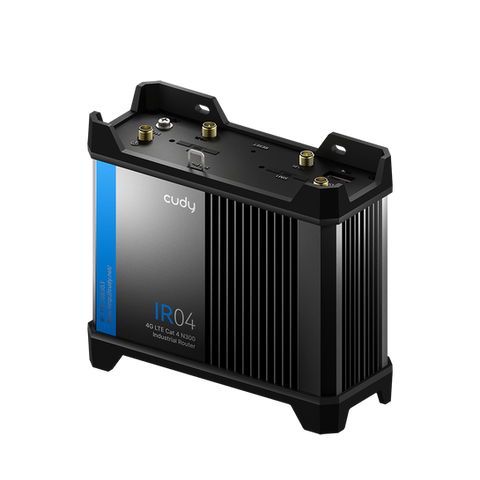

CUDY Industrial Wi-Fi Router IR04 1.0
****
כללי
**- מק"ט: IR04 1.0
- מק"ט: IR04
**
מעבד
**- מעבד: 580 MHZ Single-Core, MIPS24KEC
**
זיכרון /אחסון
**- Flash/ROM: 16 MB (128 Mbit) NOR
- DDR/RAM: 128 MB (1 Gbit) DDR2
**
סלולאר
**- Cellular Standards: 4G Cat. 4
- Cellular Antennas: 2× Detachable
- Detachable Cellular Antennas Connector: SMA Female
- SIM Options: 2× Mini SIM Slots (2FF)
**
אלחוטיות
**- 2.4 GHz Wi-Fi Speed: 300 Mbps
- 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 2× Detachable
- Detachable Wi-Fi Antennas Connector: RP-SMA Female
- FEM or PA/LNA: 2.4 GHz: 2× Internal
- Range Performance: Max: 130 m (427 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
- Wall Performance: One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 10 cm (4'')
**

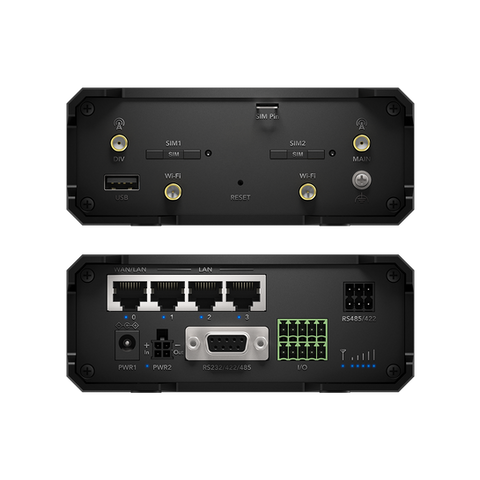

ממשקים
**- 10/100 Mbps RJ45 Ports: 4
- Ethernet Notes: Port 1 is WAN/LAN configurable, and the rest are LAN ports
- USB Ports: 1× USB 2.0
- Industrial Sockets: 1× DB9 1×|  6-PIN 1× | 10-PIN
